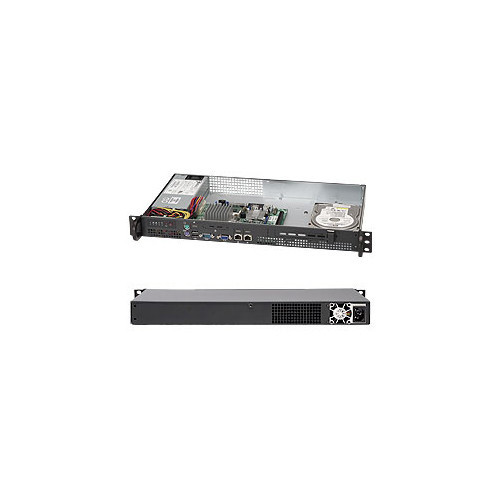

*NEW* SuperMicro CSE-503L-200B 1U 200W Black SuperChassis ***FULL MFR WARRANTY**
*NEW* SuperMicro CSE-503L-200B 1U 200W Black SuperChassis ***FULL MFR WARRANTY**
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | Chassis |
| MPN | CSE-503L-200B |
| Brand | Supermicro |
Covered by full Supermicro Manufacturer Warranty!!! Key Features 1. Mini 1U Chassis optimized for Intel® Atom™ Platform 2. 200W Low Noise Power Supply 3. Front I/O Ports 4. 1x 3.5" Internal Drive Bay 5. OR 2x 2.5" Internal Drive Bay (opt.) 6. OR 1x Full-height, Half-length PCI (opt.) 7. OR 1x 2.5" Internal Drive & 1x FH, HL PCI 8. Power Switch, Reset Button & 5 LED Indicators Available Colors Black Downloads Chassis Manual Product SKUs CSE-503L-200B SuperChassis 503L-200B (Black) Form Factor 9.8"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6" Processor Support Single Processor Support: Intel® Atom™ series Dimensions Height 1.7" (43mm) Width 17.2" (437mm) <<< Release form has 17.3" Depth 9.8" (249mm) Packaging 25.8" (W) x 6.1" (H) x 18.3" (L) Gross Weight 10 lbs (4.5kg) Available Colors Black Expansion Slots • 1x full-height half-length PCI expansion slot (Optional) Riser Card Required Drive Bays Internal Bay 1x 3.5" Internal Drive Bay (Standard)OR 2x 2.5" Internal Drive (Optional)OR 1x 2.5" (Optional)SAS or enterprise SATA HDD only recommended Front Panel Buttons Power On/Off buttonSystem Reset button LEDs Power LEDHard drive activity LED2x Network activity LEDsSystem Overheat LED I/O Ports Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 200W Low Noise AC-DC power supply with PFC AC Voltage 100 - 240V, 50-60Hz, 3-1.5 Amp Max +5V 16.0 Amp +5V standby 2.0 Amp +12V 15.0 Amp -12V 0.8 Amp +3.3V 17.0 Amp Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCCCanada - CUL listedCCC CertificationEN 60950/IEC 60950-CompliantEurope/CE MarkGermany - TUV Certified Standard Parts List Part Number Qty Description Chassis CSE-503L-200B 1 1U Chassis (Black) Cable(s) CBL-0260L CBL-0235L 1 1 US power cord 18AWG 6ft, PBF (default for low watt) 77.5cm, 16-pin to 16-pin Front Cable Front Panel MCP-280-81301-0N 1 Front Panel Control Board Power Supply PWS-202-1H 1 200W Low Noise Power Supply Terms and Conditions Hours of Operation Our business hours are 10am to 5pm PST Monday through Friday. All email requests will be addressed within 24 hours. Returns or Exchanges Returns postmarked within 30 days of the delivery of the original shipment will be accepted with 20% restocking fee, no returns allowed after 30 days. All returns must be approved by Customer Relations who will issue a Return Merchandise Authorization (RMA) number. If the item is defective and is under warranty, please contact us and we will assist you in pursuing a warranty claim with the manufacturer. Payment We proudly accept PayPal. If another form of payment needs to be used please contact us first. We can work with most payment methods. California residents will be charged 8.75% sales tax. Shipping Info We ship items worldwide, including APO / AEO address, via Fedex or US Postal Service. Items will be shipped within 2 business days upon receiving payment although in most cases they are shipped same or next day. Feel free to email us to confirm product availability and shipping date. On May-18-12 at 01:10:42 PDT, seller added the following information: FREE! Sellers: Add a FREE map to your listings. FREE!
