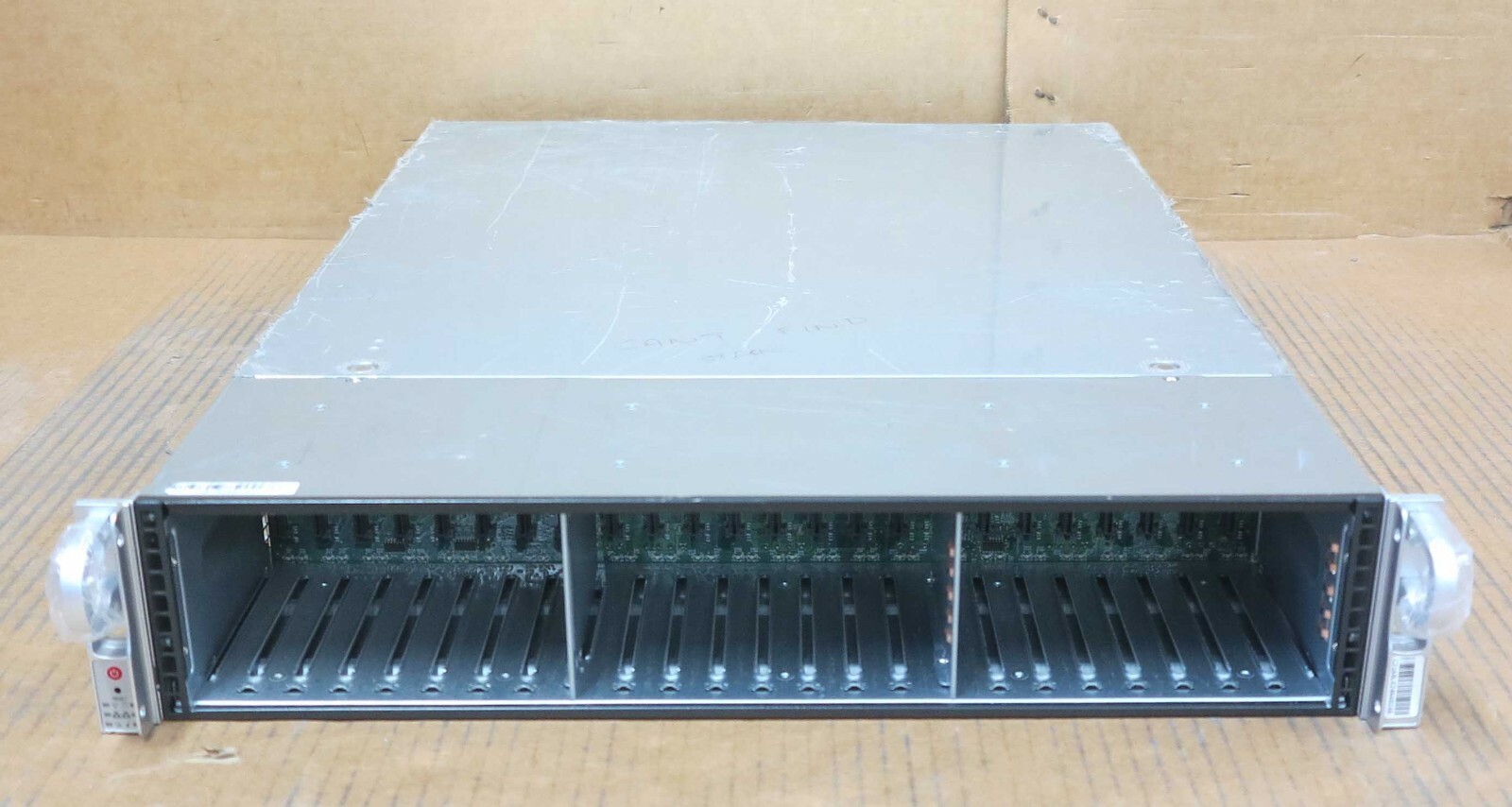

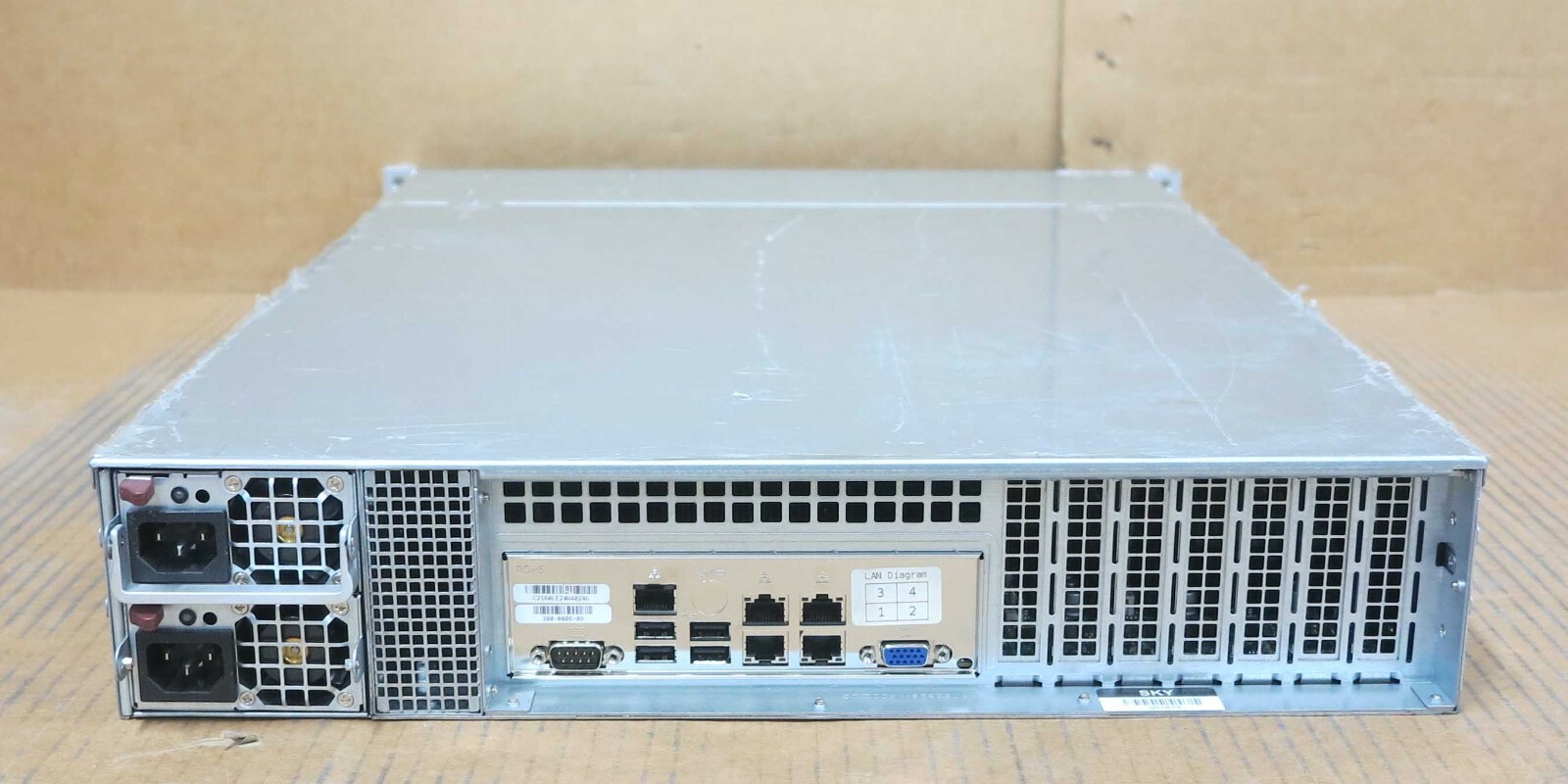

Supermicro SuperChassis CSE-216 X9DRD-7LN4F-JBOD CTO E5-2600 v2 24-Bay 2U Server
Supermicro SuperChassis CSE-216 X9DRD-7LN4F-JBOD CTO E5-2600 v2 24-Bay 2U Server
Specifications
| Return Postage Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| After Receiving The Item, Your Buyer Should Cancel The Purchase Within | 30 days |

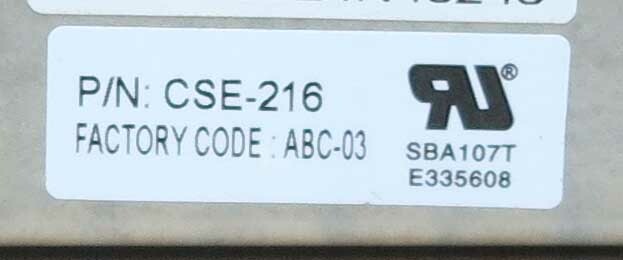

| Model | SuperChassis CSE-216 |
| Type | Server |
| Memory Type | DDR3 SDRAM |
| MPN | CSE-216 |
| Brand | Supermicro |
| Form Factor | Rack-Mountable 2U |
| Device Connectivity | VGA |
| Product Line | SuperChassis |
| Processor Manufacturer | Intel |
Supermicro SuperChassis CSE-216 X9DRD-7LN4F-JBOD CTOE5-2600 v2 24-Bay 2U ServerModel: CSE-216Motherboard P/N: X9DRD-7LN4F-JBOD CTO Server - no CPU no memory included - we can quote for these if required In Good ConditionIn Full Working OrderTestedSupplied With 2 Years Warranty No disk caddies included - if required we can supply for £9 eachIncludedBays: 24 x 2.5” SAS BaysBackplane: SAS216A rev:1.02Motherboard: X9DRD-7LN4F-JBOD rev:1.0216 x DDR3 DIMM SlotsPower Supply: 2 x 1280W PSU - PWS-1K28P-SQManufacturer's Motherboard SpecificationPhysical StatsForm FactorE-ATXDimensions12" x 13" (30.5cm x 33.0cm) Processor/CacheCPUDual Socket R (LGA 2011)Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP **)Note† BIOS version 3.0 or above is requiredNote** Motherboard supports this maximum TDP. Please verify your system can thermally support.CacheUp to 30MBSystem BusQPI up to 8 GT/s System MemoryMemory Capacity16x 240-pin DDR3 DIMM slotsUp to 1TB DDR3 ECC LRDIMMUp to 512GB DDR3 ECC RDIMMUp to 128GB DDR3 ECC/non-ECC UDIMMMemory Type1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMsSupport ECC and non-ECC UDIMMs * Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.DIMM Sizes32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMMMemory Voltage1.5 V, 1.35 VError DetectionCorrects single-bit errorsDetects double-bit errors (using ECC memory) On-Board DevicesChipsetIntel® C602J chipsetSATASATA 2.0 3Gb/s with RAID 0, 1, 5, 10 SATA 3.0 6Gb/s with RAID 0, 1, 5, 10SASSAS2 (6Gb/s) via Broadcom 2308IT mode for SAS2 in default (no RAID)IPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportNuvoton WPCM450 BMCNetwork ControllersIntel® i350 Quad Port Gigabit EthernetVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output1x Realtek RTL8201N PHY (dedicated IPMI)VideoMatrox G200eW Input / OutputSATA2 SATA 3.0 ports (6Gb/s)4 SATA 2.0 ports (3Gb/s)SAS8 SAS2 ports (6Gb/s)LAN4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN portUSB9 USB 2.0 ports total (4 rear + 4 via header + 1 Type A)Video1 VGA portSerial Port / Header1 Fast UART 16550 port / 1 HeaderDOM1 DOM (Disk on Module) power connectorTPM1 TPM HeaderChassis (Optimized for X9DRD-7LN4F-JBOD )1U ChassisCSE-815TQ-600CB2U ChassisCSE-825TQ-R740LPBCSE-826BA-R1K28LPBCSE-826BA-R920LPBCSE-826BE16-R1K28LPBCSE-826BE16-R920LPBCSE-826BE26-R1K28LPBCSE-826BE26-R920LPB3U ChassisCSE-835TQ-R920BTower / 4U RackmountCSE-846BA-R1K28BCSE-846BE16-R1K28BCSE-846BE26-R1K28BCSE-847A-R1400BCSE-847A-R1K28LPBCSE-847DE16-R1K28LPBCSE-847E16-R1400BCSE-847E16-R1K28LPBCSE-847E16-R1K28LPBCSE-847E26-R1400BCSE-847E26-R1K28LPBImportant Chassis NotesTo support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.Please use optional I/O shield MCP-260-00041-0N in Supermicro 1U chassisSuperServer(s) with X9DRD-7LN4F-JBODModel(s)SSG-6047R-E1R72L2KSSG-6047R-E1R72LSSG-6047R-E1R36LSSG-6047R-E1R24LSSG-6037R-E1R16LSSG-6027R-E1R12LSSG-2027R-E1R24L Expansion SlotsPCI-Express6 (x8) PCI-E 3.0 slots (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.) System BIOSBIOS Type128Mb SPI Flash EEPROM with AMI BIOSBIOS FeaturesPlug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0BIOS rescue hot keysUSB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1 ManagementSoftwareSuperDoctor® IIIWatch DogNMIIPMI 1.5 / 2.0Power ConfigurationsACPI / APM Power ManagementCPU Fan auto-off in sleep modePower-on mode for AC power recovery PC Health MonitoringVoltageMonitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.5+1 Phase-switching voltage regulatorFAN8x 4-pin fan headers8x fans with tachometer monitoringStatus monitor for speed controlStatus monitor for on/off controlLow noise fan speed controlPulse Width Modulated (PWM) fan connectorsTemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportI2C temperature sensing logicThermal Monitor 2 (TM2) supportPECILEDCPU / System Overheat LEDSuspend static indicator LEDUID/Remote UIDOther FeaturesChassis intrusion detectionChassis intrusion headerSDDC SupportRoHS Operating EnvironmentOperating Temperature Range10°C - 35°C (50°F - 95°F)Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)Operating Relative Humidity Range8% - 90% (non-condensing)Non-Operating Relative Humidity Range5% - 95% (non-condensing) VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£400 excluding VAT VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKTH 277289
