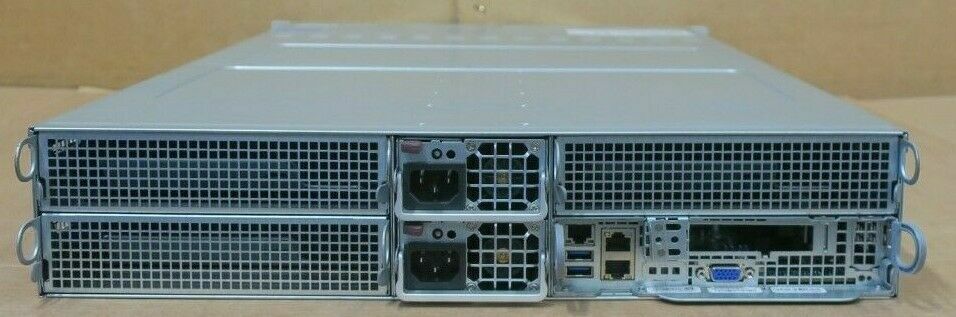

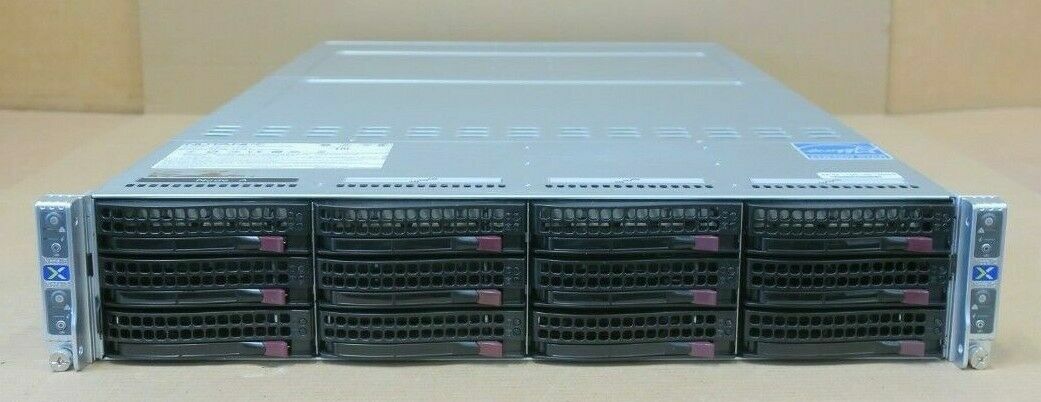

Supermicro SuperServer 6028TP-HC0R 12-Bay CTO 1-Node Server X10DRT-P 2x PSU
Supermicro SuperServer 6028TP-HC0R 12-Bay CTO 1-Node Server X10DRT-P 2x PSU
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | 6028TP-HC0R |
| Product Line | SuperServer |
| Type | Server |
| MPN | 6028TP-HC0R |
| Brand | Supermicro |
| Form Factor | Rack-Mountable 2U |
| Processor Manufacturer | Intel |
Supermicro SuperServer 6028TP-HC0R 12-Bay CTO 1-Node Server X10DRT-P 2x PSU Chassis P/N: 6028TP-HC0RNode P/N: X10DRT-P In Good Condition, Full Working OrderTested1 Year Warranty CTO Configure-To-OrderCTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required Included:1 x Supermicro SuperServer 6028TP-HC0R 4-Node Server Chassis1 x 12x 3.5" Bay Backplane BPN-SAS3-827HQ with 12 x 3.5" disk cadddies included2 x 2000W Power Supply PWS-2K04A-1R1 x Bezel1 x Server Nodes X10DRT-P Each With:2 x Heatsinks16 x DDR4 Memory SlotsMotherboard - X10DRT-P rev 1.101 x TwinPro Riser card with one PCI-E x16 slot RSC-R1UTP-E16R rev 3.001 x Backplane Adapter Card BPN-ADP-S3008L-L6IP rev 1.00Full Manufacturers specification: Product SKUsSYS-6028TP-HC0RSuperServer 6028TP-HC0R (Black) Motherboard (Four per System)Super X10DRT-P Processor/Cache (per Node)CPUIntel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *Dual Socket R3 (LGA 2011)Cores / CacheUp to 22 Cores† / Up to 55MB† CacheSystem BusQPI up to 9.6 GT/sNote† BIOS version 2.0 or above is required System Memory (per Node)Memory Capacity16x 288-pin DDR4 DIMM slotsUp to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMMMemory Type2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM SizesRDIMM: 64GB, 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GB3DS LRDIMM: 128GBMemory Voltage1.2 VError DetectionCorrects single-bit errors On-Board Devices (per Node)ChipsetIntel® C612 chipsetSASBroadcom 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 supportIPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMCNetwork ControllersIntel® i350-AM2 Dual Port Gigabit EthernetVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output1x Realtek RTL8201N PHY (dedicated IPMI)GraphicsASPEED AST2400 BMC Input / Output (per Node)SAS3x SAS3 (12Gbps) portsLAN2x RJ45 Gigabit Ethernet LAN ports1x RJ45 Dedicated IPMI LAN portUSB2x USB 3.0 ports total (2x rear)VGA1x VGA portSerial Port / Header1x Fast UART 16550 port / 1 Header (internal)Others1x SATADOM support on the motherboardChassisForm Factor2U RackmountModelCSE-827HQ+-R2K04B Dimensions and WeightWidth17.25" (438mm)Height3.47" (88mm)Depth30.5" (774mm)WeightGross Weight: 90 lbs (40.9kg)Net Weight: 72 lbs (32.7 kg)Available ColorsBlack Front PanelButtonsPower On/Off buttonUID buttonLEDsPower status LEDHDD activity LED2x Network activity LEDsUniversal Information (UID) LED Expansion Slots (per Node)PCI-Express1x PCI-E 3.0 x16 Low-profile slot0 Slot1x "0 slot" (x16)Compatible Listing(Both CPUs need to be installed for full access to PCI-E slots and 0 slot.) Drive Bays (per Node)Hot-swap3x 3.5" Hot-swap SAS/SATA HDD trays System CoolingFans4x 8cm heavy duty PWM fans with optimal fan speed control Power Supply (76mm Width)2000W Redundant Power Supplies with PMBusTotal Output Power1000W: 100 – 127Vac1800W: 200 – 220Vac1980W: 220 – 230Vac2000W: 230 – 240Vac2000W: 200 – 240Vdc (UL/cUL only)Dimension(W x H x L)76 x 40 x 336 mmInput1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)+12VMax: 83.3A / Min: 0A (100-127 Vac)Max: 150A / Min: 0A (200-220 Vac)Max: 165A / Min: 0A (220-230 Vac)Max: 166.7A / Min: 0A (230-240 Vac)Max: 166.7A / Min: 0A (200-240 Vac)(UL/cUL only)+5VsbMax: 1A / Min: 0AOutput Type27 Pairs Gold Finger ConnectorCertificationTitanium Level System BIOSBIOS Type128Mb SPI Flash EEPROM with AMI BIOSBIOS FeaturesPlug and Play (PnP)APM 1.2PCI 2.2ACPI 1.0 / 2.0USB Keyboard supportSMBIOS 2.3UEFI Operating Environment / ComplianceRoHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing) We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote. CS 254233 254234 254235 254236 -svr (254241 -12 pairs, a hs tk 1 pair per bld) dup .co.uk
