Supermicro SYS-1019D-16C-FHN13TP Server with 16-Core CPU NEW IN STOCK 5 Year Wty
Supermicro SYS-1019D-16C-FHN13TP Server with 16-Core CPU NEW IN STOCK 5 Year Wty
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Supermicro |
| Type | Server |

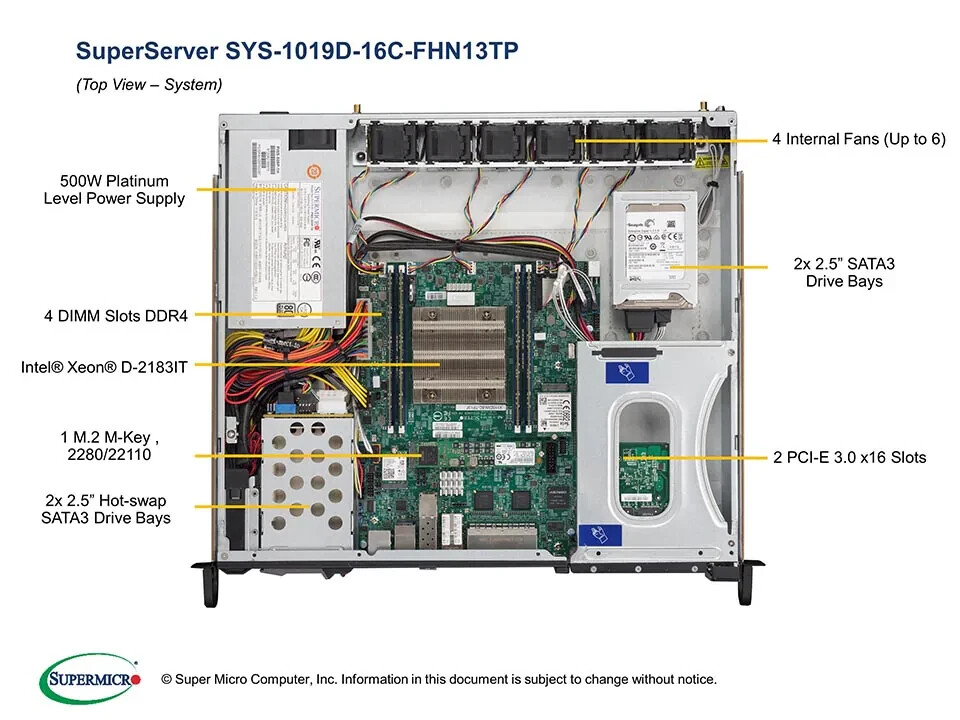

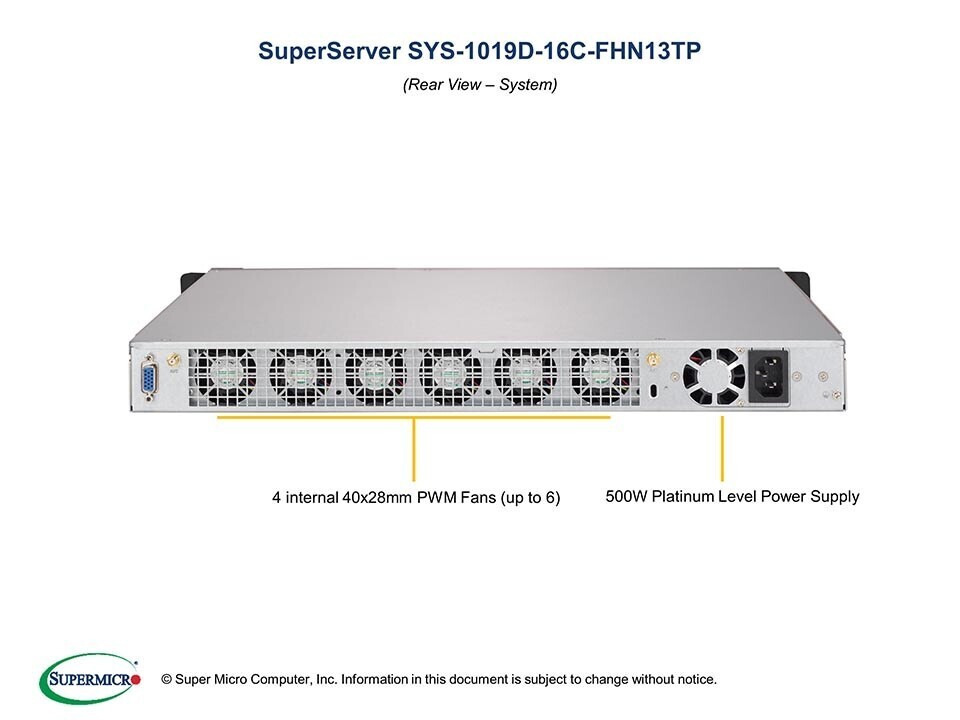

Supermicro SYS-1019D-16C-FHN13TP Server with 16-Core CPU NEW IN STOCK 5 Year Wty Specifications Product SKUsSYS-1019D-16C-FHN13TPSuperServer 1019D-16C-FHN13TP (Black)MotherboardSuper X11SDW-16C-TP13FProcessorCPUIntel® Xeon® processor D-2183IT,CPU TDP support 100WCores / Cache16 Cores, 32 ThreadsSystem MemoryMemory CapacityUp to 512GB DDR4 ECC LRDIMMUp to 256GB DDR4 ECC RDIMM4 DIMM slotsMemory Type2666/2400/2133MHz ECC DDR4 L/RDIMMOperating speed up to 2400MHzDIMM Sizes128GB, 64GB, 32GB, 16GBMemory Voltage1.2 VOn-Board DevicesChipsetSystem on Chip (SoC)SATASATA3 (6Gbps) ports via SoC controllerNetwork ControllersDual 10G SFP+ via SoCDual 10GBase-T via Intel X5578x 1GbE with Intel I350-AM4Single 1GbE with Intel I210IPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportVideoVGA via Aspeed AST2500 BMCInput / OutputSATA4 SATA3 (6Gbps) portsLAN9 RJ45 Gigabit Ethernet LAN ports2 RJ45 10GbE LAN ports2 10G SFP+ LAN ports1 RJ45 Dedicated IPMI LAN portUSB2 USB 3.0 ports (front)Video1 VGA portSerial Port / Header1 COM via RJ45System BIOSBIOS Type128Mb SPI Flash with AMI BIOSManagementSoftwareIntel® Node ManagerIPMI 2.0NMISUMWatch DogSuperDoctor® 5ChassisForm Factor1U RackmountModelCSE-513BTS-505WBDimensions and WeightHeight1.7" (43mm)Width17.2" (437mm)Depth15" (381mm)Package6.9" (H) x 19.5" (W) x 22.4" (D)WeightGross Weight: 25 lbs (11.34 kg)Net Weight: 14 lbs (6.35 kg)Available ColorsBlackFront PanelButtonsPower On/Off buttonSystem Reset buttonLEDsPower LEDHard drive activity LEDNetwork activity LEDsSystem Information LEDExpansion SlotsPCI-Express2 PCI-E 3.0 x16 (FHFL) slotsM.21 M.2 M-Key , 2280/221101 M.2 E-Key , 22301 M.2 B-Key , 3042Drive BaysHot-swap2 Hot-swap 2.5" drive baysInternal2 Internal 2.5" SSD bays (optional)System CoolingFans4x 40x28mm PWM fans (up to 6)Power Supply500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFCAC Input100-240V, 50-60Hz, 6.6A maxDC Output+3.3V: 12A+5V: 15A+5V standby: 3A+12V: 41A-12V: 0.2ACertification Platinum Certified Operating Environment / ComplianceRoHSRoHS CompliantEnvironmental Spec.Operating Temperature: 0°C to 45°C (32°F to 113°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)Parts List Parts List - (Items Included) Part NumberQtyDescriptionMotherboard / ChassisMBD-X11SDW-16C-TP13FCSE-513BTS-505WB11Super X11SDW-16C-TP13F Motherboard1U ChassisBackplaneBPN-SAS3-826TQ-B2B12-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSDCable 1CBL-0473L2SATA,INT,ROUND,ST-ST,21CM,30AWGCable 2CBL-CDAT-06621CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWGCable 3CBL-CDAT-08501CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHSFAN 1FAN-0154L4240x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACHPartsMCP-260-00144-0B11U I/O Shield for X11SDW with EMI Gasket, BlackAir ShroudMCP-310-51303-0B1Mylar Air shroud for SC513B + UP MB X11SDWRiser CardRSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots* Power SupplyPWS-505P-1H11U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH* Cable 4CBL-0160L1NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)* Cable 5CBL-0335L1CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG* FAN 2FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH* Drive Tray(s)MCP-220-00180-0B22.5" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)* PartsMCP-260-00078-0B11U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black* Front PanelMCP-280-80901-0N1SC809 FRONT CONTROL PANEL ASSY* Rail SetMCP-290-00102-0N1 setOuter rail, quick-release type, 25.6" to 33.05"* Rail SetMCP-290-00108-0B1 setInner rail, front, short (quick) for 1U 17.2* Fan HolderMCP-320-00060-0N1Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")* PartsMCP-340-00001-012Dummy fan 40x28mm Vector Data builds Rugged, Carrier-Grade and Custom systems. Vector Data is an Supermicro Authorized Partner and carries the largest inventory of Supermicro systems and parts in the world with over 10,000 brand new servers and over 80,000 motherboards in stock at 6 US warehouse locations. We make an effort to stock every Supermicro part ever produced. We offer optional extended support contracts including 24x7 phone support and advanced parts delivery for any Supermicro products. We can also offer custom spare parts kits for any server if you would like to keep spares on-site. On-site installation is available for an additional fee and we offer remote hands services at most major data center locations worldwide. We offer trade-in credit for any surplus or decommissioned computer systems or data center equipment. Only a small portion of our inventory is listed on eBay. Please contact us to have an eBay listing created if you require a custom configuration or a part that is not listed.
