Supermicro SYS-4028GR-TXRT SXM2 GPU Barebones Server NEW IN BOX, IN STOCK
Supermicro SYS-4028GR-TXRT SXM2 GPU Barebones Server NEW IN BOX, IN STOCK
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Supermicro |
| Type | Server |

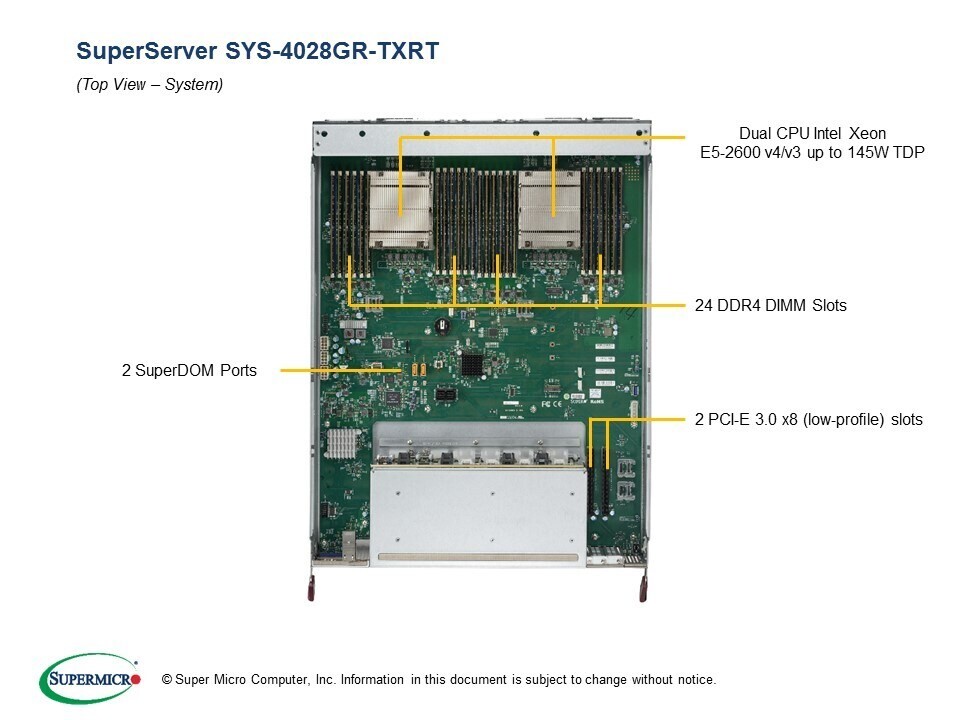

Supermicro SYS-4028GR-TXRT SXM2 GPU Barebones Server NEW IN BOX, IN STOCK Specifications Product SKUsSYS-4028GR-TXRTSuperServer 4028GR-TXRT (Black)MotherboardSuper X10DGO-TProcessor/CacheCPUIntel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *Dual Socket R3 (LGA 2011)Cores / CacheUp to 22 Cores† / Up to 55MB† CacheSystem BusQPI up to 9.6 GT/sNote† BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.GPU8 NVIDIA® Tesla® P100 SXM2NVIDIA® NVLINK™ up to 80GB/sSystem MemoryMemory Capacity24x 288-pin DDR4 DIMM slotsUp to 3TB† ECC 3DS LRDIMM, 2TB ECC RDIMMMemory Type2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM SizesRDIMM: 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GB3DS LRDIMM: 128GBMemory Voltage1.2 VError DetectionCorrects single-bit errorsOn-Board DevicesChipsetIntel® C612 chipsetSATASATA3 (6Gbps) with RAID 0, 1, 5, 10IPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMCNetwork ControllersDual Port 10GbE with Intel X540 Ethernet ControllerVirtual Machine Device Queues reduce I/O overheadSupports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 outputGraphicsASPEED AST2400 BMCInput / OutputSATA10 SATA3 (6Gbps) portsLAN2 RJ45 10GBase-T LAN ports1 RJ45 Dedicated IPMI LAN portUSB2 USB 3.0 portsVideo1 VGA ConnectorSerial Port1 Serial headerSystem BIOSBIOS Type128Mb SPI Flash EEPROM with AMI® BIOSBIOS FeaturesPlug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0USB Keyboard supportSMBIOS 2.7.1UEFIChassisForm Factor4U RackmountableRackmount Kit (MCP-290-31401-0N)ModelCSE-R422BG-2DimensionsHeight7.0" (178mm)Width17.6" (447mm)Depth31.7" (805mm)WeightNet Weight: 80 lbs (36.2 kg)Gross Weight: 135 lbs (61.2 kg)Available ColorsBlackDrive BaysHot-swap16 Hot-swap 2.5" SATA/SAS drive baysExpansion SlotsPCI-Express4 PCI-E 3.0 x16 (low-profile) slots2 PCI-E 3.0 x8 slotsM.2M.2 Interface: PCI-E 3.0 x4Form Factor: 2260, 2280, 22110System CoolingFans8x 92mm Cooling FansShrouds1 Air Shroud (MCP-310-41808-0B)Power Supply2200W Redundant Titanium Level Power Supplies with PMBusTotal Output Power1200W/1800W/1980W/2090W/2200W(UL/cUL only)Dimension(W x H x L)106.5 x 82.4 x 203.5 mmInput1200W: 100-127 Vac / 14-11 A / 50-60 Hz1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)2090W: 230-240 Vdc / 10-9.8 A (CCC only)+12VMax: 100A / Min: 0A (1200W)Max: 150A / Min: 0A (1800W)Max: 165A / Min: 0A (1980W)Max: 174.17A / Min: 0A (2090W)Max: 183.3A / Min: 0A (2200W)Max: 174.17A / Min: 0A (2090W)12VsbMax: 2A / Min: 0AOutput TypeGold Finger (connector on M/P)Certification Titanium Level [ Test Report ]PC Health MonitoringCPUMonitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35VFAN4-pin fan headers with tachometer status monitoringLow noise fan speed control modeTemperatureMonitoring for CPU and system environmentThermal Control for 8 fan connectorsOther FeaturesChassis intrusion detectionOperating Environment / ComplianceRoHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)Parts List Parts List - (Items Included) Part NumberQtyDescriptionMotherboard / ChassisMBD-X10DGO-TMBD-X10DGO-SXM-PCSE-R422BG-2111Super X10DGO-T MotherboardP100 SXM2 GPU BoardCSE-R422BG-2 ChassisBackplaneBPN-MB-R4221Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHSBackplaneBPN-SAS3-213A-N8116-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage DevicesCable 1CBL-0449L2HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWGCable 2CBL-PWCD-0174-IS4PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACHCable 3CBL-PWEX-097932X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWGCable 4CBL-SAST-05502MINI SAS HD,12G,INT,25CM,30AWGCable 5CBL-SAST-08192OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACHCable 6CBL-SAST-0974-12OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWGPartsMCP-220-42204-0N-PACK1Single pack R422BG 2U GPU tray (2U, 8 Pascal / Volta GPU),RoPower SupplyPWS-2K21A-2R42U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc,Power SupplyPWS-DF004-1F412Vdc input redundant FAN module power supports I2C functionHeatsink / RetentionSNK-P0048AP422U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32Heatsink / RetentionSNK-P4001P82U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-4028GR-TXR/TXRT Series ServersHeatsink / RetentionSNK-P4003P82U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers Vector Data builds rugged, carrier-Grade and custom systems. We use eBay to sell our OEM surplus and to reach customers across the globe. On-site installation is available for an additional fee. We also accept trade-in's of any systems or data center equipment that you may be trying to get rid of. Please contact us to have a custom eBay product listing created for you if you require a custom configuration or need a part that is not listed.
