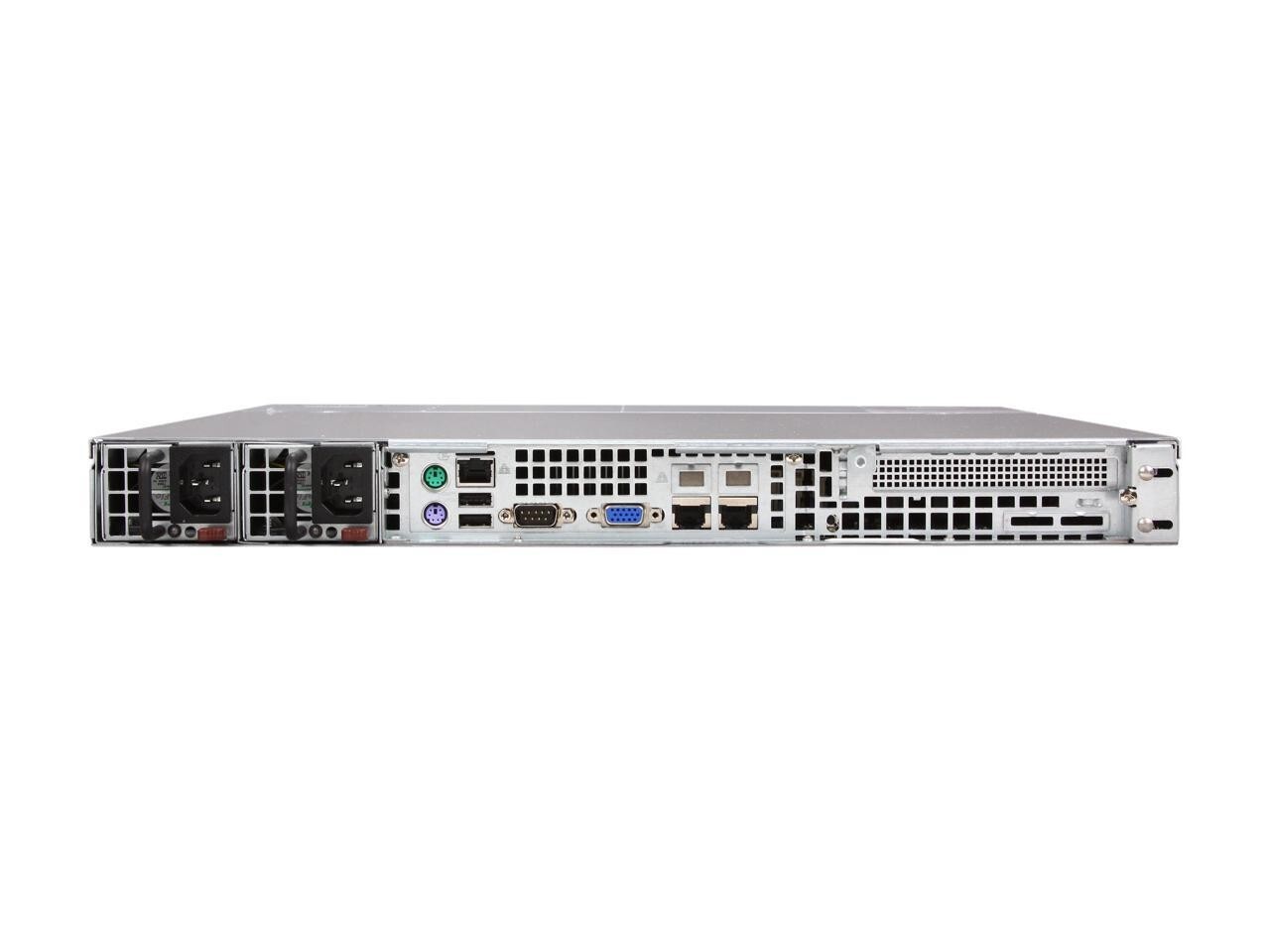

Supermicro SYS-5017R-MTRF Barebones Server with CPU NEW, IN STOCK, 5 Year Wty
Supermicro SYS-5017R-MTRF Barebones Server with CPU NEW, IN STOCK, 5 Year Wty
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Supermicro |
| Type | Server |
Supermicro SYS-5017R-MTRF Barebones Server with CPU NEW, IN STOCK, 5 Year Wty Product SKUsSYS-5017R-MTRFSuperServer 5017R-MTRF (Black) Motherboard Super X9SRi-F Processor/CacheCPUSingle Socket R (LGA 2011)Intel® Xeon® processor E5-2600 and E5-2600/1600 v2 family†Note† BIOS version 3.0 or above is requiredCacheUp to 30MBSystem BusQPI up to 8 GT/s System MemoryMemory Capacity8x 240-pin DDR3 DIMM slotsUp to 512GB DDR3 ECC LRDIMMUp to 256GB DDR3 ECC Registered memory (RDIMM)up to 64GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)Memory Type1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMsDIMM Sizes32GB, 16GB, 8GB, 4GB, 2GB, 1GBMemory Voltage1.5 V, 1.35 VError DetectionCorrects single-bit errorsDetects double-bit errors (using ECC memory) On-Board DevicesChipsetIntel® C602 ChipsetSATA2 SATA3 (6Gbps) & 4 SATA2 (3Gbps)RAID 0, 1, 5, 10 support (Windows)RAID 0, 1, 10 support (Linux)IPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportWinbond WPCM540 BMCNetwork ControllersIntel® i350 Dual port GbE LANVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output1x Realtek RTL8201N PHY (dedicated IPMI)VGAMatrox G200eW 16MB DDR2 graphics controllerSuper I/ONuvoton NCT 6776F Input / OutputSATA2 SATA 3.0 ports (6Gbps)4 SATA 2.0 ports (3Gbps)LAN2x RJ45 LAN ports1x RJ45 Dedicated IPMI LAN portUSB9 USB 2.0 ports total (2 rear + 6 via headers + 1 Type A)VGA1x VGA portKeyboard / MousePS/2 keyboard and mouse portsSerial Port / Header1x Fast UART 16550 serial port1x internal headerChassisForm Factor1U RackmountModelCSE-813MTQ-R400CB DimensionsHeight1.7" (43mm)Width17.2" (437mm)Depth19.85" (503mm)Gross Weight38 lbs (16.5kg)Available ColorsBlack Front PanelButtonsPower On/Off buttonSystem Reset buttonLEDsPower LEDHard drive activity LED2x Network activity LEDsSystem Overheat LED Expansion SlotsPCI-Express1x PCI-E 3.0 x16 Full-height slotAOC Compatibility Matrix Drive BaysHot-swap4x 3.5" Hot-swap drive bays BackplaneSAS/SATA HDD Backplane (SAS support requires optional SAS controller) System CoolingFans4x 40x28mm 4-pin PWM Cooling Fans Power Supply400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2CAC Input100-240V, 50-60Hz, 6-3ADC Output+5V standby: 3A+12V: 33ADC Output With Power Distributor+5V: 25A+3.3V: 25A-12V: 0.6A System BIOSBIOS Type8MB SPI Flash EEPROM with AMI BIOSBIOS FeaturesDMI 2.3PCI 2.3ACPI 1.0 / 2.0USB Keyboard supportSMBIOS 2.3 Operating Environment / ComplianceRoHS RoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)See Parts List Parts List - (Items Included) Part NumberQtyDescriptionMotherboard / ChassisMBD-X9SRi-F CSE-813MTQ-R400CB1 1Super X9SRi-F Motherboard 1U ChassisBackplaneBPN-SAS-815TQ1Sup 4x SAS/SATA;SATA conCable 1CBL-0157L18 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBFCable 2CBL-0186L1SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWGRiser CardRSC-RR1U-E161RSC-RR1U-E16 with PCI-E x16 outputHeatsink / RetentionSNK-P0047P11U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB Vector Data builds rugged, carrier-grade and custom systems. We use eBay to sell our OEM surplus and to reach customers across the globe. On-site installation is available for an additional fee. We also accept trade-in's of any systems or data center equipment that you may be trying to get rid of. Please contact us to have a custom eBay product listing created for you if you require a custom configuration or need a part that is not listed.
