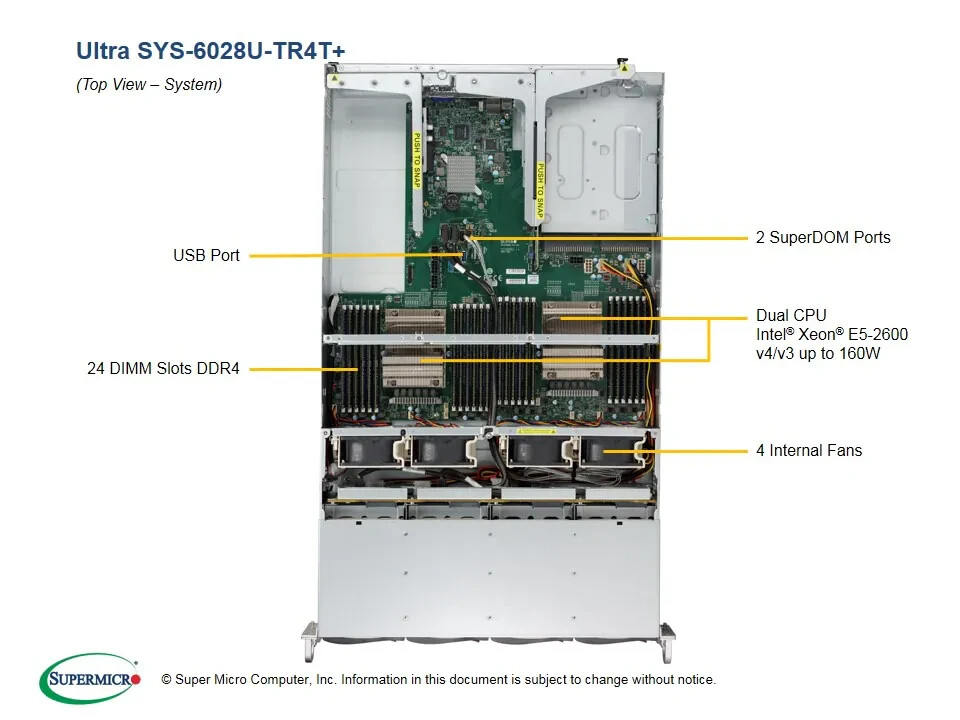

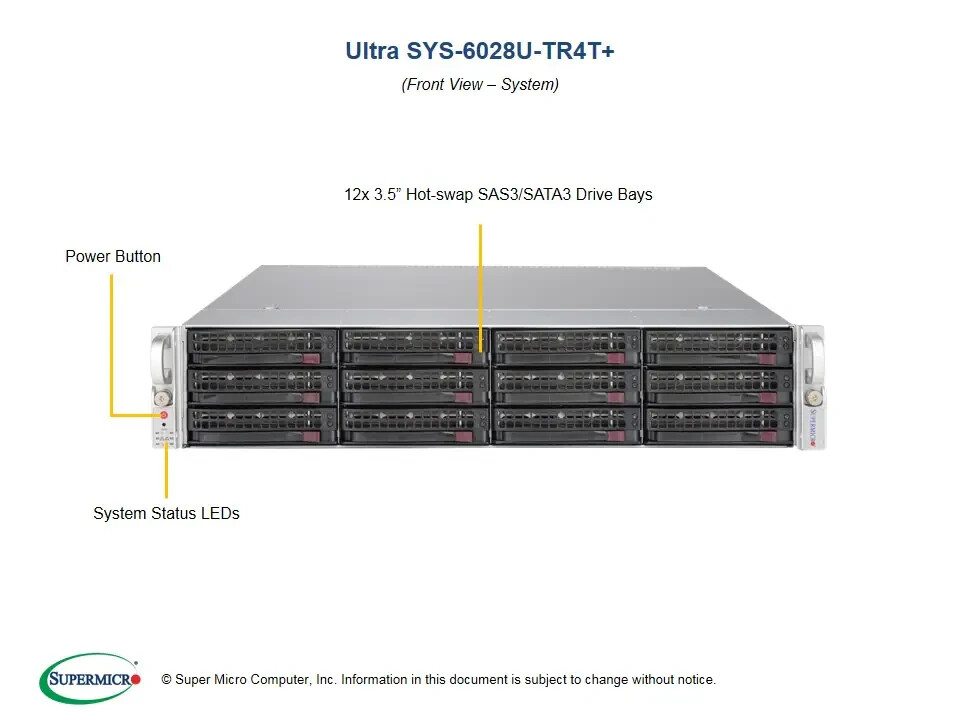

Supermicro SYS-6028U-TR4T+ Barebones Server NEW IN STOCK 5 Yr Warranty
Supermicro SYS-6028U-TR4T+ Barebones Server NEW IN STOCK 5 Yr Warranty
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Supermicro |
| Type | Server |
Supermicro SYS-6028U-TR4T+ Barebones Server NEW IN STOCK 5 Yr Warranty Specifications Product SKUsSYS-6028U-TR4T+SuperServer 6028U-TR4T+ (Black)MotherboardSuper X10DRU-i+Processor/CacheCPUIntel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *Dual Socket R3 (LGA 2011)Cores / CacheUp to 22 Cores† / Up to 55MB† CacheSystem BusQPI up to 9.6 GT/sNote† BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.System MemoryMemory Capacity24x 288-pin DDR4 DIMM slotsUp to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMMMemory Type2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit2666/2400 ECC DDR4 NVDIMMDIMM SizesRDIMM: 64GB, 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GB3DS LRDIMM: 128GBNVDIMM: 16GBMemory Voltage1.2 VError DetectionCorrects single-bit errorsOn-Board DevicesChipsetIntel® C612 chipsetSATASATA3 (6Gbps) with RAID 0, 1, 5, 10IPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMCNetwork Connectivity4x 10GBase-T ports via AOC-2UR6-i4XTIntel® X540 10GBase-T1x Realtek RTL8211E PHY (dedicated IPMI)GraphicsASPEED AST2400 BMCInput / OutputSATA10x SATA3 (6Gbps) portsSAS12x SAS3 ports support via optional Add-on CardLAN4x RJ45 10GBase-T LAN ports1x RJ45 Dedicated IPMI LAN portUSB5x USB 3.0 ports(2 rear, 2 onboard header, 1 Type A)Video1x VGA ConnectorSerial Port / Header1x Serial headerDOM2x SuperDOM (Disk on Module) portsSystem BIOSBIOS Type128Mb SPI Flash EEPROM with AMI BIOSBIOS FeaturesPlug and Play (PnP)APM 1.2PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1ManagementSoftwareSuperDoctor® 5Intel® Node Manager 3.0Watch DogNMISUM and SSMOptional IPMI 1.5 / 2.0Power ConfigurationsACPI Power ManagementPower-on mode for AC power recoveryChassisForm Factor2U RackmountModelCSE-829UAC-R1K02-TDimensions and WeightWidth17.2" (437mm)Height3.5" (89mm)Depth28.46" (723mm)WeightNet Weight: 36 lbs (16.4 kg)Gross Weight: 72 lbs (32.7 kg)Available ColorsBlackFront PanelButtonsPower On/Off buttonSystem Reset buttonLEDsPower status LEDHDD activity LED2x Network activity LEDsSystem information (overheat/UID) LEDExpansion SlotsPCI-Express1x PCI-E 3.0 x16 slot (FH, 10.5" L)6x PCI-E 3.0 x8 slots(4x FH, 10.5" L, 1x LP, 1x Internal LP)(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)Drive BaysHot-swap12x Hot-swap 3.5" Drive Bays:10x SATA3 ports by defaultOptional drive support: 12x SAS3Note: optional storage card is required to support more than 10 drives.Backplane2U SAS/SATA backplaneSystem CoolingFans4x 8cm heavy duty PWM fansPower Supply1000W Redundant Power Supplies with PMBusTotal Output Power800W: 100 – 127Vac1000W: 200 – 240Vac1000W: 200 – 240Vdc (for CCC only)Dimension(W x H x L)73.5 x 40 x 203 mmInput100-127Vac / 9.8 - 7A / 50-60Hz200-240Vac / 7 - 5A / 50-60Hz200-240Vdc / 7 - 5A (for CCC only)+12VMax: 66.7A / Min: 0A (100-127Vac)Max: 83A / Min: 0A (200-240Vac)Max: 83A / Min: 0A (200-240Vdc)12VsbMax: 2.1A / Min: 0AOutput Type25 Pairs Gold Finger ConnectorCertification Titanium Level [ Test Report ]PC Health MonitoringVoltageMonitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.5+1 Phase-switching voltage regulatorFAN8x 4-pin fan headersStatus monitor for speed controlPulse Width Modulated (PWM) fan connectorsTemperatureSupport to monitor Supermicro AOC temperatures from IPMI or SD 5Monitoring for CPU and chassis environmentCPU thermal trip supportThermal Control for 8x Fan ConnectorsThermal Monitor 2 (TM2) supportPECILEDMemory DIMM ECC error LEDsCPU / System Overheat LEDSuspend static indicator LEDUID/Remote UIDOther Features4x 8-pin GPU power connectorsChassis intrusion detectionChassis intrusion headerSDDC SupportRoHSOperating Environment / ComplianceRoHSRoHS CompliantEnvironmental Spec.Operating Temperature: 5°C to 40°C (41°F to 104°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)Parts List Parts List - (Items Included) Part NumberQtyDescriptionMotherboard / ChassisMBD-X10DRU-i+CSE-829UAC-R1K02-T11Super X10DRU-i+ Motherboard2U ChassisAdd-on Card / ModuleAOC-2UR6-I4XT12U Ultra Riser based on Intel X540 controller with 4 10Gbase-T ports, 1 internal PCI-E x8 3.0 slot and 1 PCI-E x16 3.0Air ShroudMCP-310-82912-0N1BackplaneBPN-SAS3-826A112-port 2U SAS3 12Gbps direct-attached backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSDCable 1CBL-PWEX-065218 pin female to 2x RA(Right Angle) big 4 pin female power, 60/65CM, 18AWG,RoHS/REACHCable 2CBL-SAST-06551MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWGCable 3CBL-SAST-06571MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWGCable 4CBL-PWEX-067318 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACHCable 5CBL-SAST-06311MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWGLabelLBL-01081CAUTION LABEL FOR REDUNDANT PWR SYSTEMSManualMNL-1641-QRG1SYS-6028U-TR(4/4T/T/TP)+, QRG,HF,RoHS/REACHRiser CardRSC-R1UW-E8R11U RHS WIO Riser card with one PCI-E x8 slotRiser CardRSC-R2UW-4E812U LHS WIO Riser card with four PCI-E x4 slotsHeatsink / RetentionSNK-P0058PSU22U Passive CPU Heat Sink for X10 2U 24-DIMM Ultra Series Servers,RoHS/REACHPower SupplyPWS-1K02A-1R21U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACHMounting RailsMCP-290-00053-0NMCP-290-00060-0N11Inner/outer rail set, quick-release type, 26.5" to 36.4"Threaded rail adapter default for round hole rack Vector Data builds rugged, carrier-grade and custom systems. We use eBay to sell our OEM surplus and to reach customers across the globe. Please contact us to have a custom eBay product listing created for you if you require a custom configuration or need a part that is not listed.
